Machinery Equipment: Machines We Work With

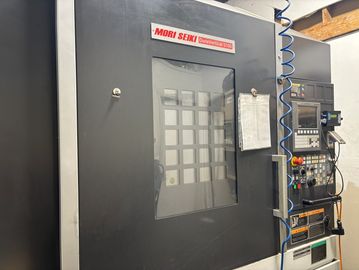

MORI SEIKI DURA VERTICAL 5100
Overall Dimensions: 132″ x 95″ x 105″ Weight: 16,000 lbs.
Travels
X-Axis: 41.3″
Y-Axis: 20.9″
Z-Axis: 20.1″
Table
Length: 53.1"
Width: 23.6"
Number of Std T-Slots: 5
T-Slot width: 16 mm
Spindle
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 20 HP

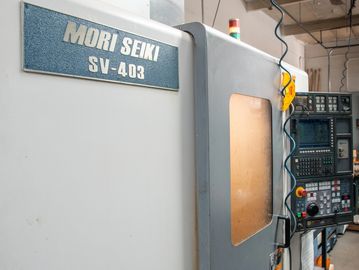

MORI SEIKI SV-403
Overall Dimensions: 98" x 84" x 106" Weight: 12,100 lbs.
Travel
X-Axis: 23"
Y-Axis: 16.9″
Z-Axis: 18″
Table
Length: 19″
Width: 35″
Number of Std T-Slots: 3
T-Slot Width: 18 mm
Spindle
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 10 HP

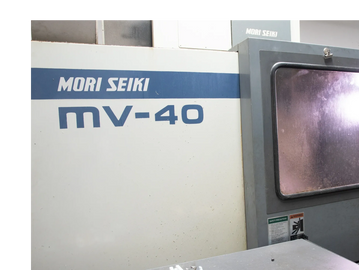

MORI SEIKI MV-40
Overall Dimensions: 101" x 101" x 110" Weight: 13,400 lbs.
Travel
X-Axis: 31.5"
Y-Axis: 16"
Z-Axis: 20.1"
Table
Length: 43.4″
Width: 17.7″
Number of Std T-Slots: 3
T-Slot Width: 18 mm
Spindle
Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 10 HP
MORI SEIKI NVX5100/40
Overall Dimensions: 145" x 108" x 102" Weight: 15,400 lbs.
Travel
X-Axis: 41.3"
Y-Axis: 20.9"
Z-Axis: 20.1"
Table
Length:23.6"
Width: 53.1"
Number of Std T-Slots: 6
T-slot width: 18 mm
Spindle
Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 20 HP

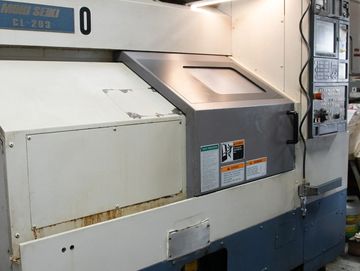

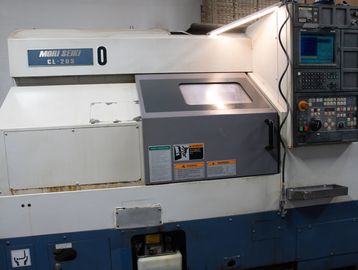

MORI SEIKI CL-203
Overall Dimensions: 120″ x 70″ x 80″ Weight: 7,500 lbs.
Travel
X-Axis: 9.2"
Z-Axis: 12.2"
Tailstock
Body Travel: 19.3″
Quill Diameter: 4.33″
Quill Stroke: 3.93″
Taper: MT-4
Spindle
Spindle Nose: A2-6
Speed Range: 3,500 RPM
Spindle Power: 15 HP
MORI SEIKI NL2500
Overall Dimensions: 157″ x 83″ x 87″ Weight: 12,786 lbs.
Travel
X-Axis: 10.2″
Z-Axis: 31.2″
Tailstock
Body Travel: 28.8″
Quill Diameter: 3.34″
Quill Stroke: 3.1″
Taper: MT-4
Spindle
Spindle Nose: A2-8
Speed Range: 4,000 RPM
Spindle Power: 25 HP
